Drilling out the trunk support straps.

Tagged: Body, Disassembly

Drilled out all the spot welds between the trunk pan and the support straps in preparation for removing a large section of the pan.



I started by dot-punching and drilling a 2mm pilot hole (with a Cobalt drill bit) from underneath, then from above drilled the hole to 10mm (with another Cobalt drill bit). I didn’t worry about putting a hole in the strap, as I’ll be welding them to the new pan from underneath via plug-welding these holes.

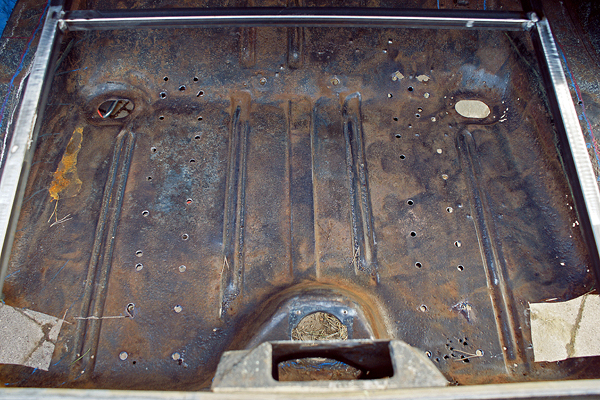

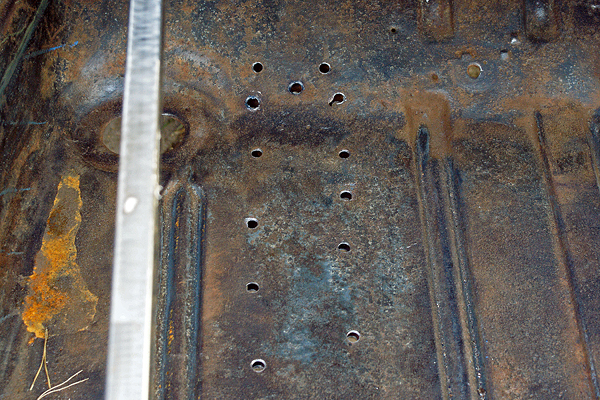

From above:

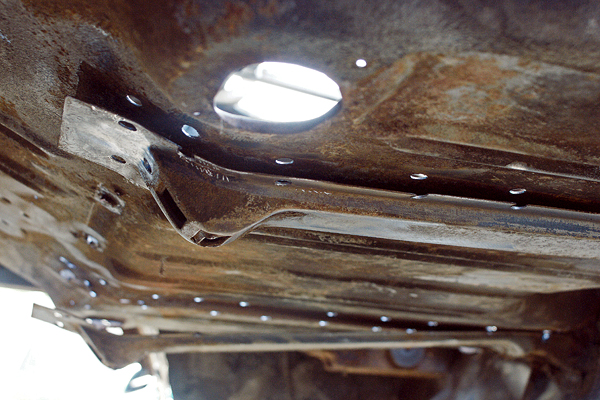

From below:



The supports are then welded to the tail panel, but I’ll be leaving them there, I just wanted to free the trunk pan.
